Hi Christian,

Heard about the RTTL possibly washed ashore in Banda Aceh following the Tsunami. I have looked at all the news feeds that I can find and so far all I have turned up are steel launches of about the same size.

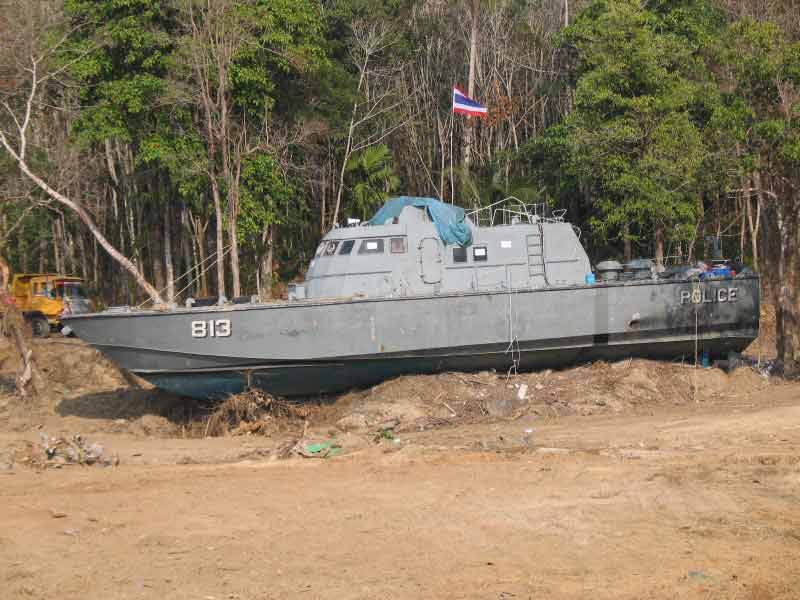

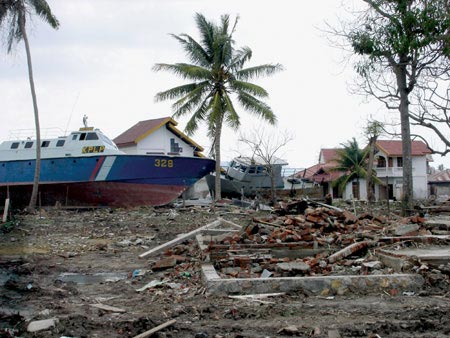

Boat 1





Boat 2



Has one of these been confused with an RTTL or have I missed one somewhere?
Advance - Runaway Quickly , Runaway Quickly
Back to Top
Christian View Drop Down
Senior Member
Senior Member


Joined: 17 June 2005
Location: Gibraltar
Status: Offline
Points: 770
Post Options Post Options   Thanks (0) Thanks(0)   Quote Christian Quote  Post ReplyReply Direct Link To This Post Posted: 02 March 2007 at 8:44am

Hi d-zine

I did the same search apparently, your blue hull photo looks like the one being investigated, but does not resemble an RTTL from this angle...

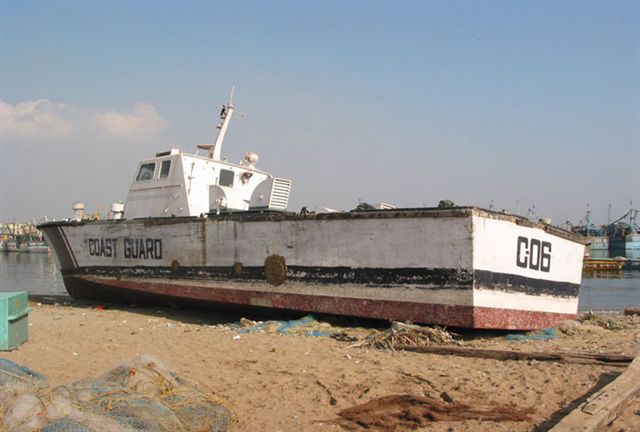

This other one certainly does look like a '50s Vosper build (save the apparently horizontal planking) they used to have a yard in Singapore so it could have been built there.



Edited by Christian
Back to Top
johnk View Drop Down
Senior Member
Senior Member


Joined: 25 March 2006
Location: United Kingdom
Status: Offline
Points: 1333
Post Options Post Options   Thanks (0) Thanks(0)   Quote johnk Quote  Post ReplyReply Direct Link To This Post Posted: 02 March 2007 at 12:38pm

Hi Guys,



Spotted your posts all the way at the bottom of the forum, as I said before, much going on elsewhere but need a good spread of topics, and albeit in very sad circumstances, photos of these craft most interesting, as yo say, a number of UK desinged vessels built under licence abroad, and a number of course of UK built vessel now abroad also, went to a conference in London and a very interesting presenation on a WW2 ship HMS Whimbrel in Egypt now the Tarek, looking to get her back to Liverpool. All good stuff,



John

Back to Top
2772e View Drop Down
Newbie
Newbie


Joined: 14 May 2005
Location: United Kingdom
Status: Offline
Points: 15
Post Options Post Options   Thanks (0) Thanks(0)   Quote 2772e Quote  Post ReplyReply Direct Link To This Post Posted: 02 March 2007 at 10:06pm

I seem to remember that Vosper offered their hard chine hull to the Malasian police for a fast launch. I think it was about 100ft long. Whilst the hull looked similar the bow chine was slightly higher. Not to be confused with the RTTL's

Regards

Simon

Back to Top
rafwebfoot View Drop Down
Senior Member
Senior Member


Joined: 15 May 2007
Location: Scotland
Status: Offline
Points: 111
Post Options Post Options   Thanks (0) Thanks(0)   Quote rafwebfoot Quote  Post ReplyReply Direct Link To This Post Posted: 18 May 2007 at 6:47am

Hi folks,

for the record, the Mk.1A RTTL was powered by three Napier Sea Lions using wing props of 26"dia x 22.5" pitch, and centre prop of 21.5"dia x 16.7" pitch.  When converted to MK2 all had twin L/H props of 33" dia x 37" pitch. The gearboxes were V drives at 1.54 -1. The performance of the Mk.2 was as follows.

Max speed- 39 knots., Cruising speed 33.3 knots @ 2000rpm., Continuous cruising speed 30 knots @ 1800rpm. Range was 530 miles on full tanks of 2200 gallons(later tank system)

All RAF craft had L/H props except for Pinnace 1381 when she was an experimental boat with Thornycroft gearboxes in place of the standard Mathway type, and the two Turbo charges Pinnaces 1391 and 1392. I also recall one 43ft RSL being tested with Thornycroft gearboxes but will have to dig out her number.

FAIR WINDS AND A FAVOURABLE TIDE
Donald
Back to Top
dgray View Drop Down
Senior Member
Senior Member


Joined: 24 November 2005
Location: United Kingdom
Status: Offline
Points: 578
Post Options Post Options   Thanks (0) Thanks(0)   Quote dgray Quote  Post ReplyReply Direct Link To This Post Posted: 05 June 2007 at 11:25pm
RTTL Model 2754 on ebay

http://cgi.ebay.co.uk/MODEL-BOAT-LAUNCH-IN-RAF-COLOURS_W0QQi temZ150128885061QQihZ005QQcategoryZ140971QQssPageNameZWDVWQQ rdZ1QQcmdZViewItem#ebayphotohosting


If the link is bad, the item number is 15012888506



Back to Top
cofrada View Drop Down
Newbie
Newbie


Joined: 25 September 2006
Location: United Kingdom
Status: Offline
Points: 17
Post Options Post Options   Thanks (0) Thanks(0)   Quote cofrada Quote  Post ReplyReply Direct Link To This Post Posted: 19 June 2007 at 11:48pm
Only One RTTL ever achieved 50kt plus that was 2772E in her early days. well before I joined marine branch. I served on 2758/68/71 in Malta, and occasionally on the one in Gan in 1973 which number escapes me at the moment. I am still in contact with others that served on RTTLs and with hand on heart and inter boat Bull**** aside depending on hull condition a max of 37-40 kt would be the norm if you were lucky, on the odd occasion when we were allowed to override the governors and get a few more revs the fastest I have ever been on in a 'ttl was 43kt, how the coxswain measured that was a mystery as the Chernikeef log was showing a constant light or flashing so fast that  it looked constant. That boat was 2771 shortly after a re-deck in 1969, she was weed free and light. There was A very good reason that we did not do those speeds very often, the fuel consumption was ridiculous, you could be dragging nearly 200gph per engine per hour. The other reason was of course that if there was any kind of sea running it was damned uncomforable. 30kt was a good cruising speed; until of course you saw a frigate there were not many skippers that could resist the temptation of doing a few 40kt circles round a frigate.
Back to Top
cofrada View Drop Down
Newbie
Newbie


Joined: 25 September 2006
Location: United Kingdom
Status: Offline
Points: 17
Post Options Post Options   Thanks (0) Thanks(0)   Quote cofrada Quote  Post ReplyReply Direct Link To This Post Posted: 19 June 2007 at 11:55pm

Those pictures of beached boats are not TTL's

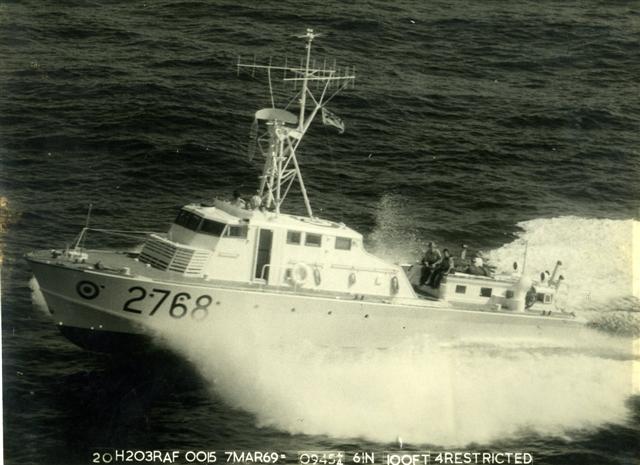

picture attached is 2768 at about 38kt. The skipper was Fl/lt Fosh, later to be Gp/capt, and DMC. M/Coxswain Sammy Hall, the fitters on the engine hatch Ch/techTom Weldon and nearest camera, little ol' me. The first RTTL I ever was operational on.





Edited by cofrada
Back to Top
cofrada View Drop Down
Newbie
Newbie


Joined: 25 September 2006
Location: United Kingdom
Status: Offline
Points: 17
Post Options Post Options   Thanks (0) Thanks(0)   Quote cofrada Quote  Post ReplyReply Direct Link To This Post Posted: 20 June 2007 at 4:28pm
Originally posted by DMSmith DMSmith wrote:

Just visited RAF Museum Hendon this 1/2 term and pleasantly surprised to find proper boats out front!! (Actually couldn't belive what I saw and nearly flattened the parking attendant.) One is 2757 68' Air Sea Rescue Launch the other a 64' ?? (not sure as kids dragged me off to look at jets and bombers!!). They are both cracking looking boats, what was the shorter boat? Is there any info on the website or elsewhere about them?

Was surprised to see that RAF Museum doesn't mention them in the guide or show them properly on their website. Has anyone any idea how many other land-locked exhibits there are?

They looked in pretty good condition, I wonder when they were last at sea?

If anyone can point me in the right direction it will save me having to go back and read the plaques again.

Thanks

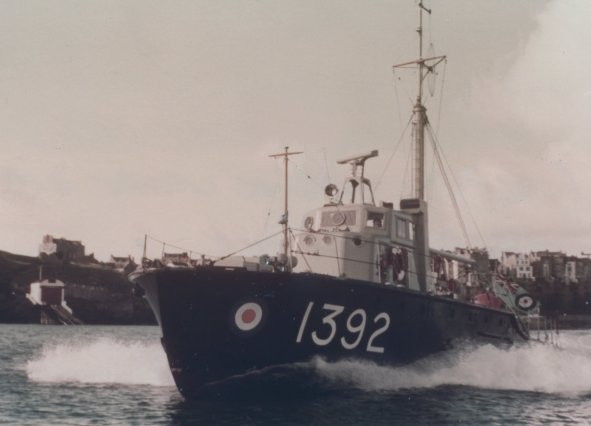

The other boat is a 63' Pinnace, the workhorse of marine

branch.

Powered by 2 RR C6 diesels either turbocharged or supercharged, the one in the picture is the turbo version. 16-17kts



Edited by cofrada
Back to Top
tramontana View Drop Down
Senior Member
Senior Member


Joined: 06 April 2007
Status: Offline
Points: 418
Post Options Post Options   Thanks (0) Thanks(0)   Quote tramontana Quote  Post ReplyReply Direct Link To This Post Posted: 20 June 2007 at 5:11pm
cofrada, nice to see another server on the site like webfoot with practical experience of RTTL's, I have the throttle box off 2772E as she was scrapped locally, during my research on this boat it appears that she may have had uprated engines when new whilst Vosper "showboated" her and she also appears to have carried test equipment, but as you say thrashing about at 40kts is very  hard on the petrol and the crew's innards.
Back to Top
